FA Spray Robots | Intelligent Spray Automation for Industry

Explosion Proof - FA Spray Robots

Redefining Smart Spray Automation - Precision, Flexibility, Efficiency


Overall Features

  • Advanced high-precision drive system ensures smooth and flexible movement.
  • Multi-mode mounting options: wall, ceiling, or ground, ideal for tight spaces.
  • Built-in intelligent 3D vision and auto-path planning for automated workpiece handling.
  • Explosion-proof models available for enhanced safety.
  • Support for external robot axes for expanded workspace and versatility.
  • Easy integration and simple configuration for rapid deployment.
  • Superior spray consistency and professional finish, outperforming manual labor.
  • Efficiency up to 2.5x higher than traditional spray robots and human operators.

Use Case Applications

FA Spray Robots are engineered for automated painting and coating in modern manufacturing. Their flexible design suits industries such as automotive parts, furniture, marine components, valves, containers and agricultural machinery. With options for enclosed or open spray booths, robots can handle small, medium, or large workpieces with seamless adaptation for batch or custom jobs.

Advantages Over Other Spray Robots

  • Zero singularity at the wrist and singularity-free front-side operation enables perfect finishes.
  • Expandable working area: add external axes and customize for any workpiece size or production line.
  • Explosion-proof certification for hazardous environments (select models).
  • Quick training and deployment via intuitive controls and path planning.
  • Multiple mounting options support space-constrained factories.
  • Rapid model changeover for flexible production.
  • Quality and consistency reliably exceed manual and competitive robotic solutions.

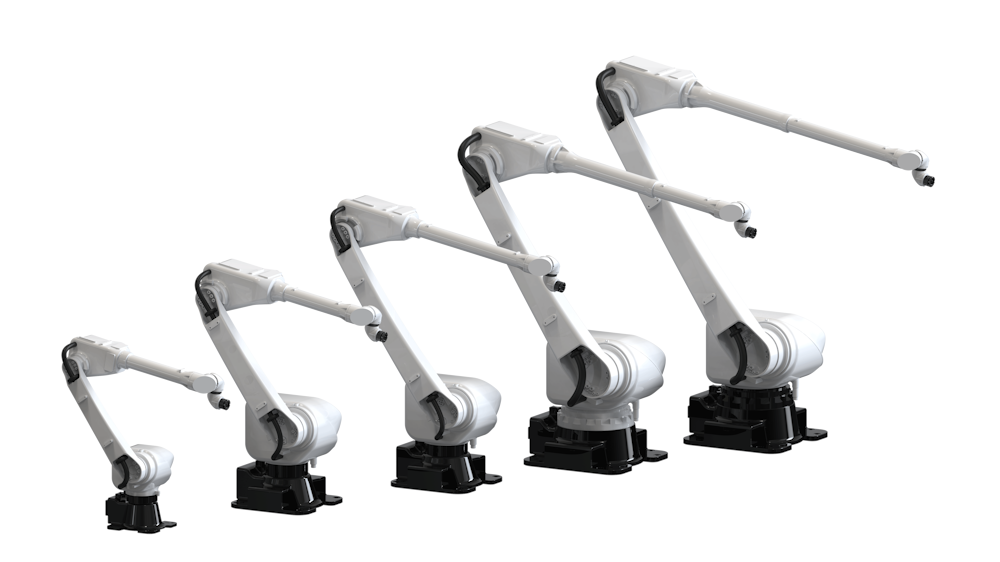

FA Spray Robot Model Lineup & Specifications

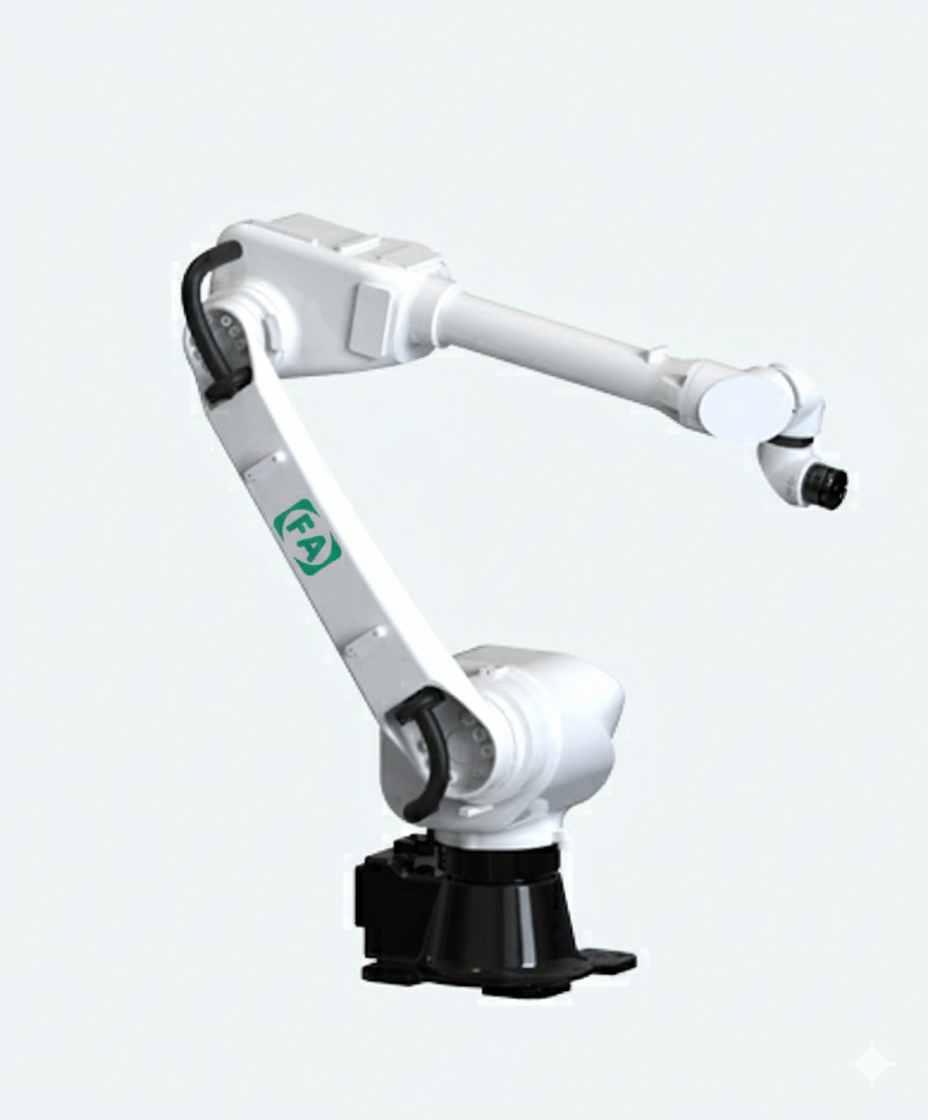

FA5-1600 Spray Robot

  • Arm Span: 1600 mm
  • Payload: 5 kg
  • Recommended for: Small workpieces (chairs, valve bodies, lamp covers, housings)
  • Mounting: Upside-down or wall (space-saving)
  • Functions: High-precision BBR drive, supports external axis extension

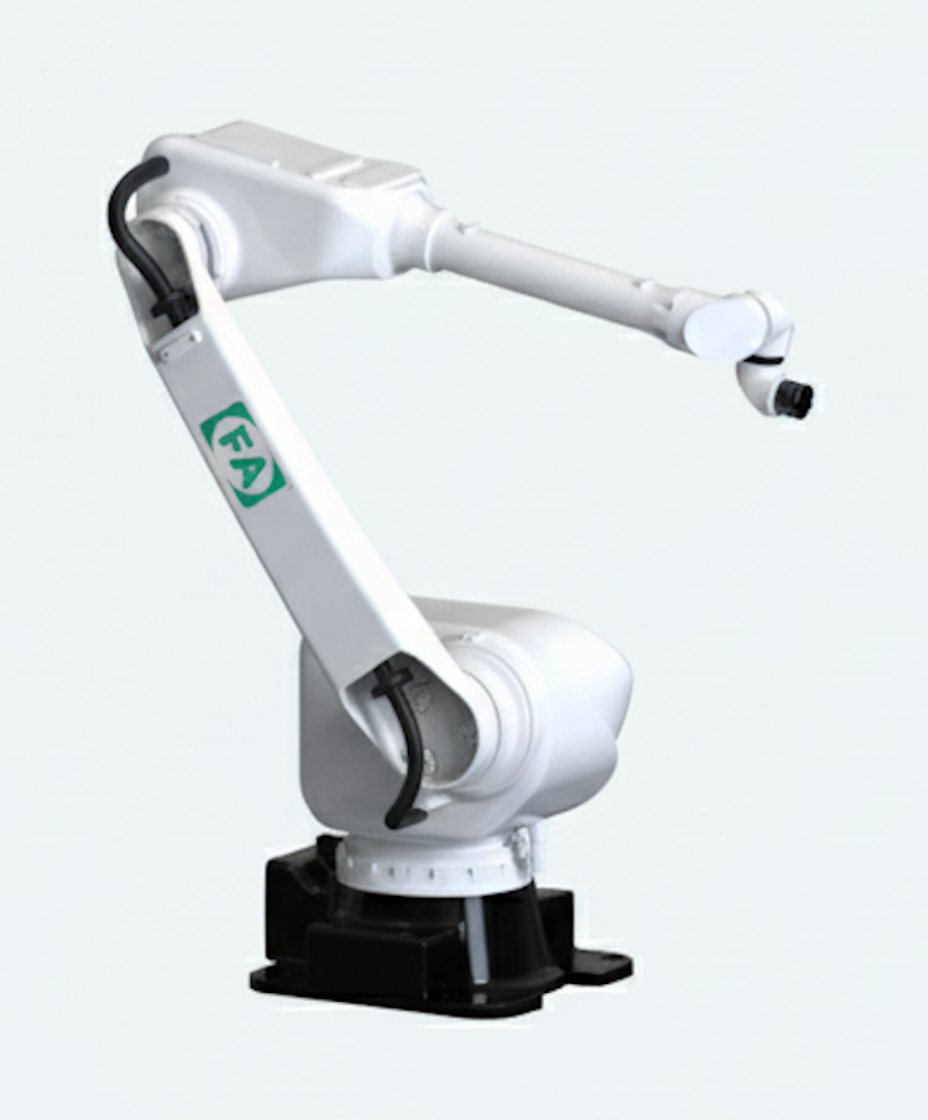

FA15-2000 Spray Robot

  • Arm Span: 2000 mm
  • Payload: 15 kg
  • Recommended for: Medium workpieces (automobile sheet metal, profiles, furniture, valves, marine parts)
  • Mounting: Ground or upside-down
  • Features: Explosion-proof; advanced wrist drive; extendable for larger workspace

FA8-2600 Spray Robot

  • Arm Span: 2600 mm
  • Payload: 8 kg
  • Recommended for: Medium components (automotive sheet metal, doors, marine parts, valves)
  • Mounting: Versatile, for medium-sized booths
  • Functions: Flexible path planning, wrist joint precision

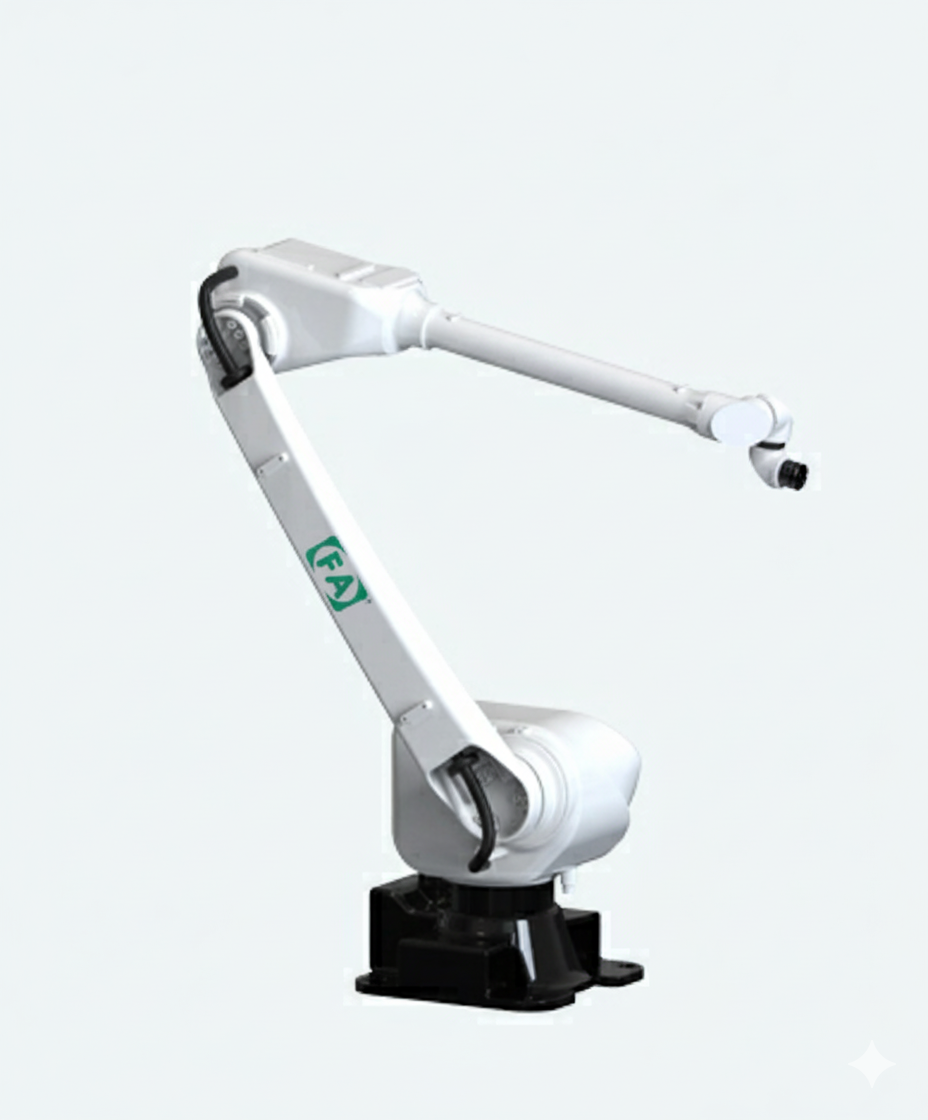

FA15-3200 Spray Robot

  • Arm Span: 3200 mm
  • Payload: 15 kg
  • Recommended for: Medium/Large workpieces (auto parts, furniture, vessel parts, motors, valves)
  • Mounting: Ground or overhead
  • Features: Explosion-proof; high-torque drive

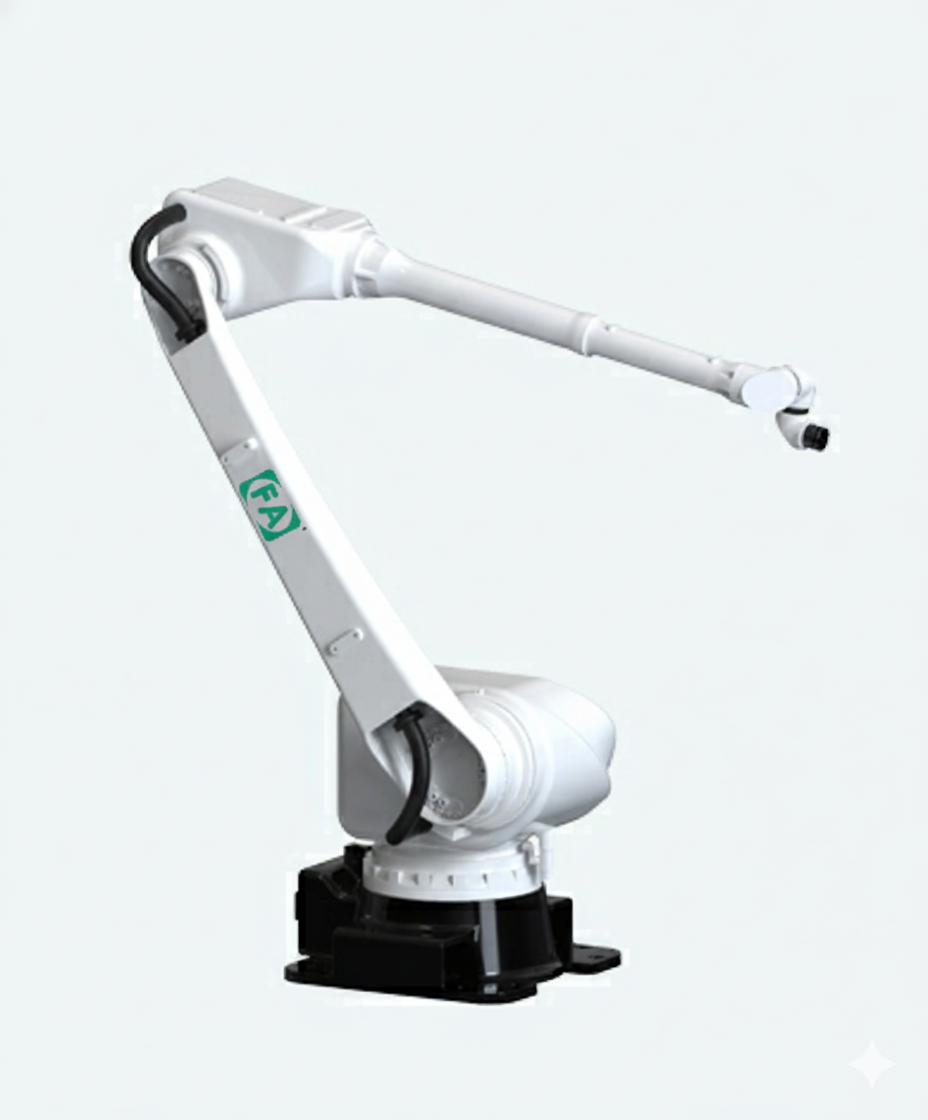

FA10-3800 Spray Robot

  • Arm Span: 3800 mm
  • Payload: 10 kg
  • Recommended for: Large workpieces (containers, rail carriages, agriculture machinery, wind equipment)
  • Mounting: Floor or suspended
  • Functions: Extra-long reach, for heavy and complex jobs

Explosion Proof Spray Robots

  • This painting spraying robot has explosion-proof function that passed China's gas and dust explosion-proof certification.
  • This certification allows robots to operate in flammable and explosive environments.
  • The Explosion proof robots are being pressurized and controlled by a pressure control unit in the control panel.
  • Allowable explosion-proof areas are Zone 1 or Zone 2 (reference standard: EN 60079-0:2012).
